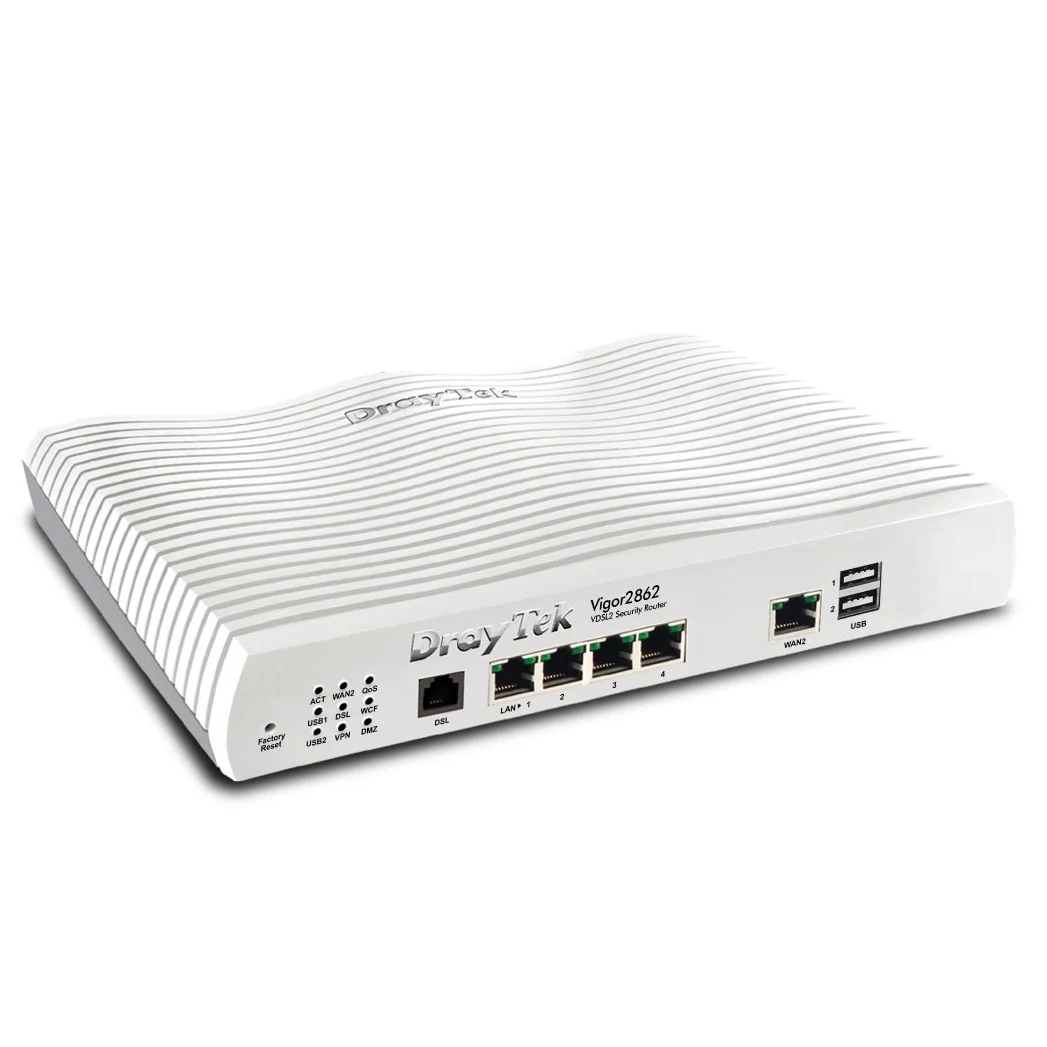

DrayTek Vigor2862 - VDSL2/ADSL2+ with 3G/4G backup

DrayTek Vigor2862 - VDSL2/ADSL2+ with 3G/4G backup


Model: DV2862

Vigor2862 Series is a VDSL2/ADSL2+ Security Firewall router which is compatible with variants of ADSL and VDSL. All the models have an RJ-11 DSL port, and a Gigabit Ethernet WAN port which can be used with a cable-modem to connect to a second line for load balancing or failover, there are also two USB ports which can work with 3G/4G/LTE USB modems to add wireless connectivity.

Vigor2862 Series features comprehensive firewall and content security management (CSM) to secure the local network. It can also be a central management portal for Vigor APs and Vigor Switches, providing Network Administrator a simpler way to maintain all the network devices.

Connection types

  • ADSL2+

  • VDSL2 used in Fiber to the building (FTTB) and Fiber to the node (FTTN) basically any time the fiber doesn't enter your home.


  • Fast VPN throughput, VPN load-balancing and backup for site-to-site applications

  • Object-based SPI Firewall and CSM (Content Security Management) for network security

  • High Availability mode

  • Embedded Central VPN Management for 8 remote Vigor routers

  • Central AP Management for deployment of multiple wireless VigorAPs

  • Works with Smart Monitor Network Traffic Analyzer (30-nodes)

  • Works with VigorACS 2 Central Management for multi-site deployment


  • VDSL2/ADSL2+, Gigabit Ethernet WAN port, Dual USB ports for failover and load-balancing

  • Two USB 2.0 ports for connection to two 3.5G/4G LTE USB mobiles, FTP server and network printer

  • 4 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions

  • IPv6 & IPv4

  • Increased IP addresses (1022) and IP subnets (8)

  • 16 x VLANs for secure and efficient workgroup management

  • 32 x VPN and 16 x SSL-VPN tunnels with Load Balance and Redundancy

  • Dimension : 241mm x 165mm x 44mm
