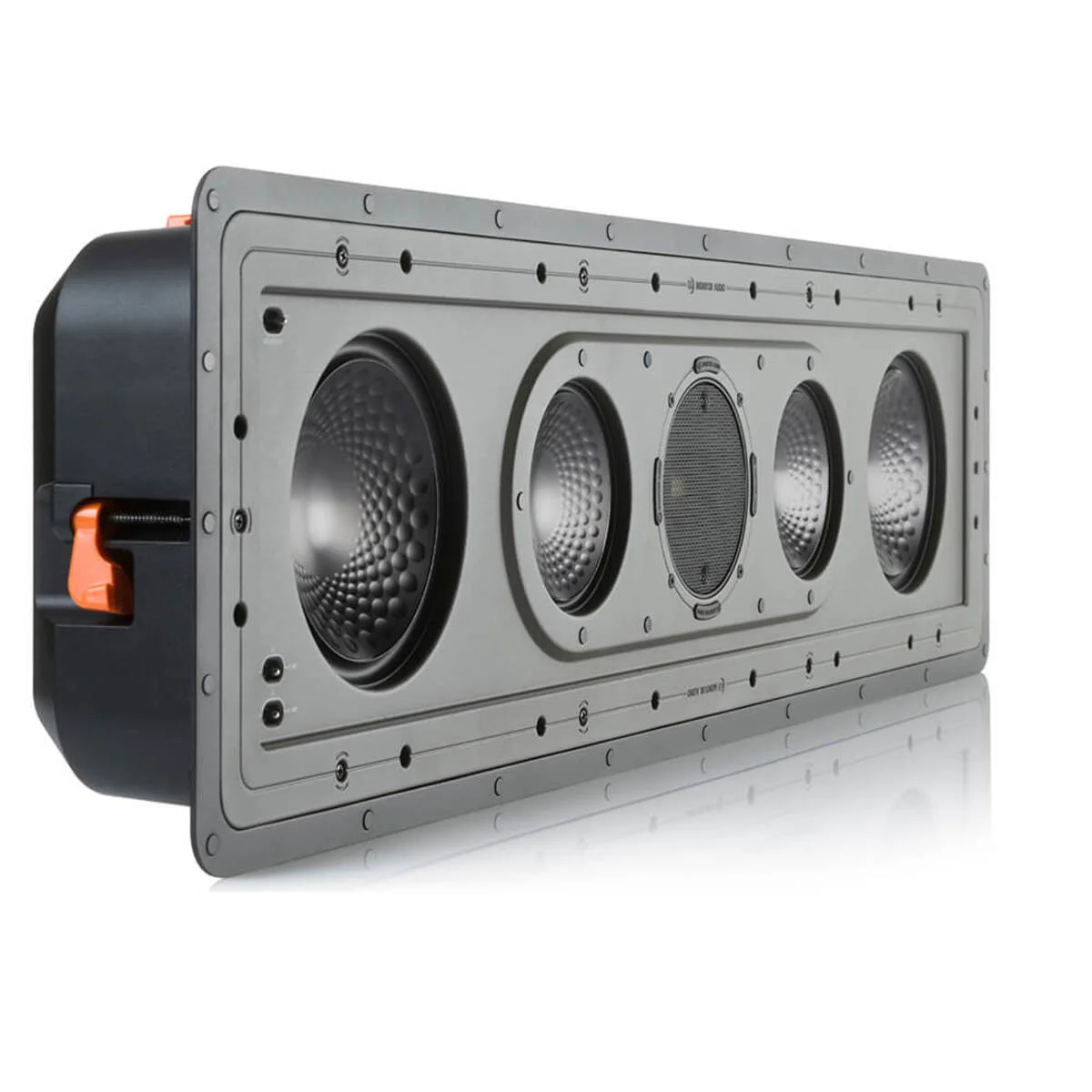

MONITOR AUDIO In-wall Speaker CP-IW260X

MONITOR AUDIO In-wall Speaker CP-IW260X

1,390.00
  • Frequency Response: 50 Hz - 30 kHz (-6 dB typical in room response)

  • Nominal Impedance: 6 ohms

  • Sensitivity (1W@1M): 89 dB

  • Maximum SPL: 113.8 dBA

  • Power Handling (RMS): 150 W

  • Recommended Amplifier Requirements: 60 - 150 W

  • Crossover Frequency:

    • L.F - 500 Hz @ 12 dB/Octave

    • M.F -500 Hz @ 12 dB/Octave

    • H.F - 3 kHz @ 18 dB/Octave

  • Drive Unit Complement

    • 2 x 6.5" C-CAM Bass drivers

    • 2 x 4" C-CAM Mid-range drivers

    • 1 x 25 mm (1") C-CAM Gold Dome tweeter

  • Adjustment Controls

    • Boundary Compensation (On/Off)

    • MF Level: +1/0/-1 (dB)

    • HF Level: +1/0/-1 (dB)

  • Overall Dimensions (H x W x D): 907 x 257 mm (353/4 x 101/8")

  • Overall Depth (including grille): 102 mm (4")

  • Cut-Out Dimensions: 880 x 230 mm (3421/32 x 9")

  • Mounting Depth: 96 mm (33/4")

  • Fixing Type: 10 x Tri-Grip Dog leg fixings

  • Construction Material: Cast Polymer enclosure (RoHS2 Compliant)

  • Weight: 11.98 kg (26 lb 6 oz)

  • Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)
